DSS - Gabion wall estimates

ICAR - Indian Institute of Soil and Water Conservation
Research Center, Chandigarh – 160 019

Following are the key values to be filled by user. Editable blue cells feed the calculation; grey cells recalculate automatically.

Key values	Value (m)	Items	Unit	DSR	Rates (Rs.)
Length		Item 1 – Surface dressing	Sqm
Top width		Item 2 – Earth work in excavation	Cum
Bottom width		Item 3 – GI wire net cage preparation	Sqm	MR
Height of wall		Item 4 – Collection of stones	Cum	MR
Foundation Depth		Item 5 – Hand packing of stones	Cum	MR
Length of HWE		Item 6 – Cost of GI wire (10 SWG)	Kg	MR
Top width of HWE
Bottom width of HWE
Height of HWE
Apron, Length
Apron Width
Apron Depth

Sr. No.	Particulars	Numbers	Length (m)	Width (m)	Height/Depth (m)	Quantity	Remarks/Units	DSR Code	Rate (Rs)	Amount (Rs)
A	Main structure
1	Surface dressing of the ground including removing vegetation and in equalities not exceeding 15 cm deep and disposal of rubbish as directed lead up to 50 m and lift up to 1.5 m.
	For main structure
	For Apron.
					Total		Sqm
2	Earth work in excavation by mechanical means (Hydraulic excavator) / manual means in foundation trenches or drains (not exceeding 1.5 m in width or 10 sqm on plan), including dressing of sides and ramming of bottoms, lift upto 1.5 m, including getting out the excavated soil and disposal of surplus excavated soil as directed, within a lead of 50 m. All kinds of soil.
	Foundation of Main structure
	Apron
					Total		Cum
3	GI wire net cage preparation including wire knitting with 10 SWG Hot dip GI wire with mesh size 10 x 10 cm for super structure.
	Head wall
a	Top & Bottom face
b	Sides (Front & Back)
c	Sides (Left & Right)
	Total						Sqm
	Head wall Extension
a	Top & Bottom face
b	Sides (Front & Back)
c	Sides (Left & Right)
	Total						Sqm
	Apron
a	Top & Bottom face
c	Sides (Front & Back)
e	Sides (Left & Right)
	Total						Sqm
	Net Total Wiremesh area						Sqm	MR
4	Collection of stones rough hammer dressing (more than 15 cm stone boulders)
	for Head wall & foundation
	For HWE
	For Apron.
	Total						Cum	MR
5	Hand packing of stones and packing in GI wire cage etc complete	as above					Cum	MR
6	Cost of GI wire (10 SWG) @ 1.28 kg/sq m						Kg	MR
									Total Cost
Note: Rates are as per CPWD, DSR 2021 and prevailing Market Rate

Sr. No.	Particulars	Numbers	Quantity	Rate (Rs)	Amount (Rs)	Unit	DSR Code
1	Surface dressing of the ground including removing vegetation and in equalities not exceeding 15 cm deep and disposal of rubbish as directed lead up to 50 m and lift up to 1.5 m.					Sqm
2	Earth work in excavation by mechanical means (Hydraulic excavator) / manual means in foundation trenches or drains (not exceeding 1.5 m in width or 10 sqm on plan), including dressing of sides and ramming of bottoms, lift upto 1.5 m, including getting out the excavated soil and disposal of surplus excavated soil as directed, within a lead of 50 m. All kinds of soil.					Cum
3	GI wire net cage preparation including wire knitting with 10 SWG Hot dip GI wire with mesh size 10 x 10 cm					Sqm	MR
4	Collection of stones rough hammer dressing (more than 15 cm stone boulders)					Cum	MR
5	Hand packing of stones and packing in GI wire cage etc complete					Cum	MR
6	Cost of GI wire (10 SWG) @ 1.28 kg/sq m					Kg	MR
	Total Cost, Rs.
Note: Rates are as per CPWD, DSR 2021 and prevailing Market Rate

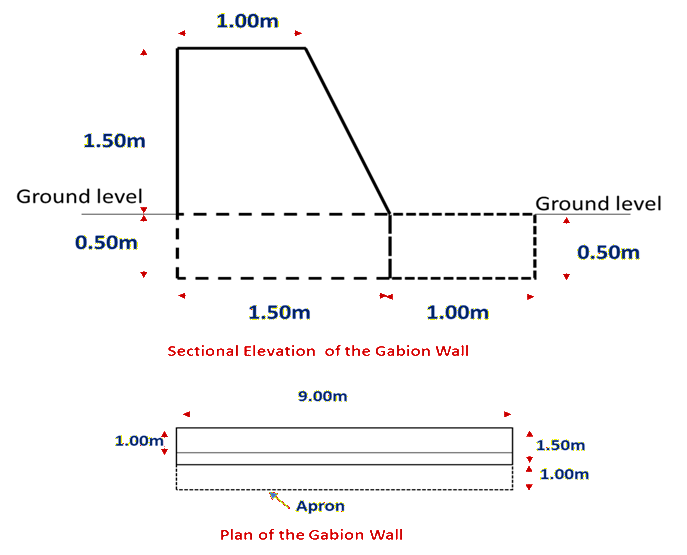

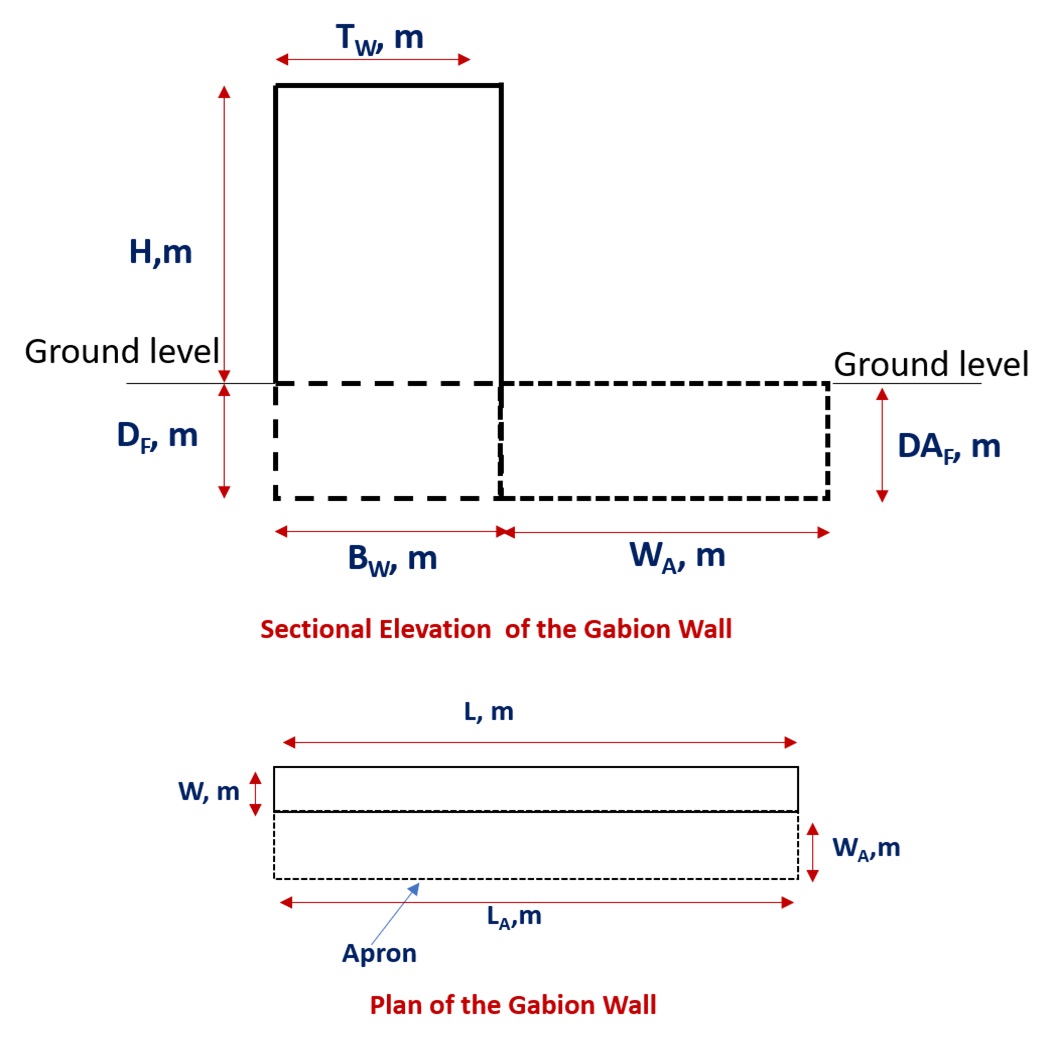

All dimensions in metres. Reference sketch for the values entered above.
